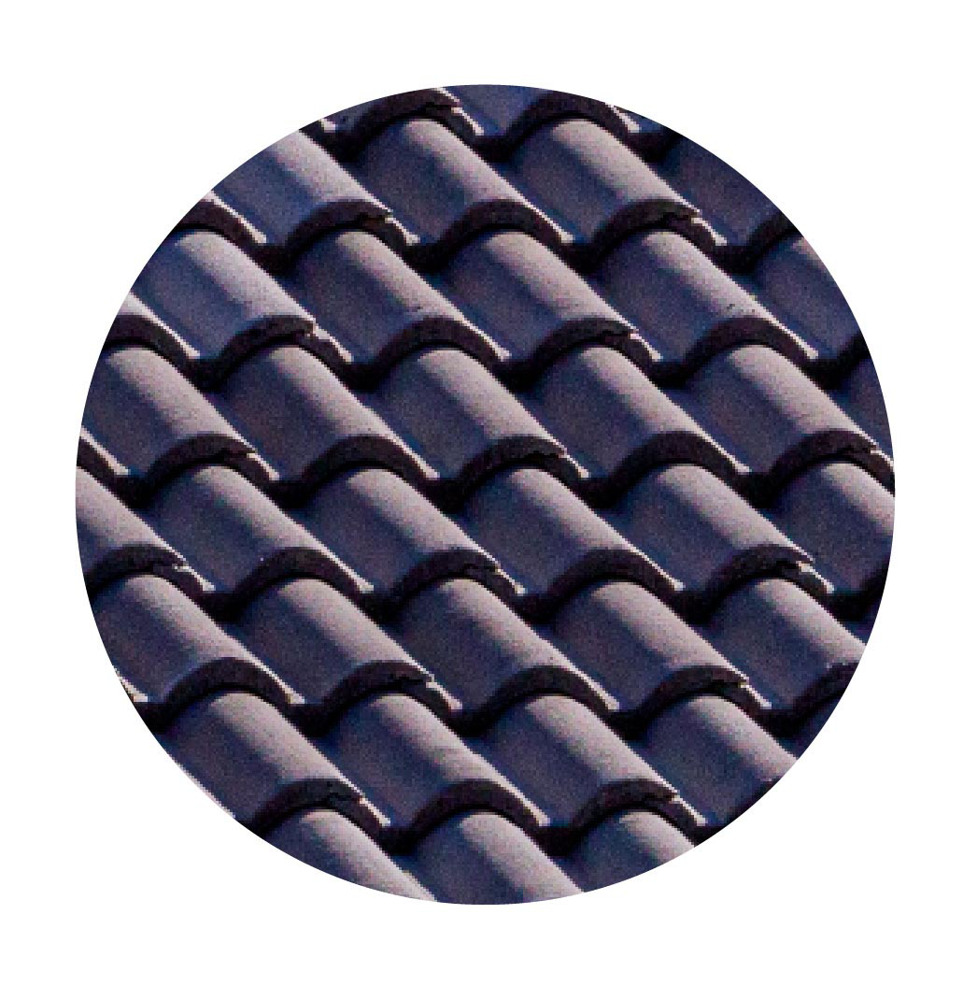

THE

Tuscan
Charcoal
Select a colour
Details
Description:
Classic & elegant
Dimensions:
420mm x 332mm
Linear Cover:
300mm
Weight of tile:
4.9kg
Available Colours
Charcoal
Tan
Terracotta
Red
Brown
Dolomite
Plum
2-Tone Terracotta
2-Tone Tan
2-Tone Red
Specifications
Roof Pitch:
17.5° to 25°
26° and up
Headlap (min.):
100mm
75mm
Batten Centres (min):
320mm
345mm
Batten per m²:
3.13mm
2.9mm
No. of tiles per m²:
10.42
9.66
Mass of tiles per m²:
±51kg
±47kg
Tiling Batten:
Batten +14mm
Rafter Centres:
760mm with 38x38 batten
